FG403 In-Floor Scale Retrofit

The FG403 In-Floor Scale Retrofit is a flush-mounted medical platform scale designed to replace Scale-tronix® model 6102 without requiring replacement of the existing pit frame. This retrofit solution allows healthcare facilities to upgrade outdated weighing systems while avoiding the costly construction work associated with removing and rebuilding the floor pit.

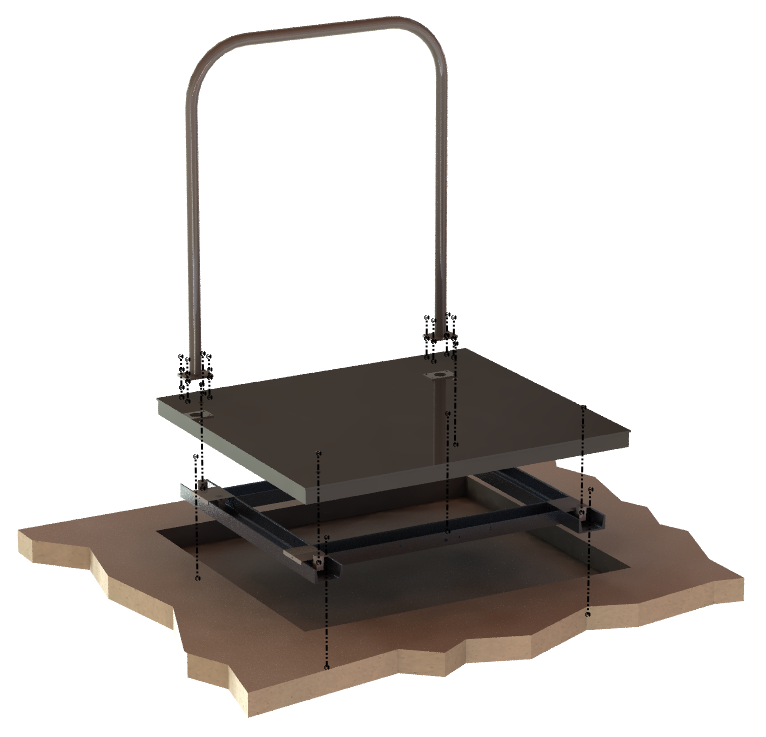

The FG403 includes a new transducer, stainless steel top plate, and SR Scales digital readout, all engineered to fit directly into the existing pit frame and wall box. Once installed, the scale provides a reliable and durable weighing station capable of accommodating patients using walkers, canes, wheelchairs, or stretchers.

Designed for modern healthcare workflows, the scale features touchless auto-weigh operation, which automatically activates the scale, locks in a stable weight reading, and can optionally print a record that includes weight, date, and time information. When BMI functionality is enabled, the scale can also calculate and record body mass index.

Built with the rugged reliability expected from SR Scales, the FG403 provides a long-lasting retrofit solution that improves workflow efficiency while maintaining accurate patient weight measurement in clinical environments.

Key Features

• 1000 lb / 454 kg weighing capacity

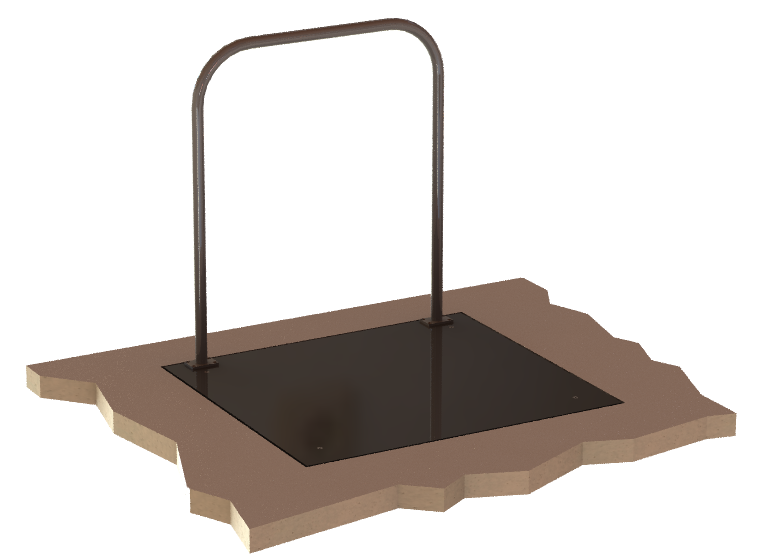

• Flush-mounted in-floor retrofit platform design
• Direct replacement for Scale-tronix® model 6102
• Fits existing pit frame and wall box for simplified installation
• 32" × 36" weighing platform
• Touchless auto-weigh operation automatically records stable weight
• Optional built-in thermal printer for weight, date, time, and BMI records
• Memory recall stores last stable weight
• Optional stainless steel handrail for patient support
• Accommodates patients with walkers, canes, wheelchairs, or stretchers
• Durable construction designed for long-term hospital use
• Designed for hospitals, clinics, and healthcare facilities
• Made in the USA
