SR1601 Series

The SR1601 Waterpark Scale is a purpose-built rider qualification system designed to quickly and safely verify individual and group rider weights for waterpark attractions. Using a Go/No-Go LED light system, the SR1601 allows ride operators to instantly determine if riders meet the required weight limits while minimizing guest embarrassment and reducing potential confrontations.

Designed for modern slide towers, the SR1601 system allows individual rider weights and group raft weights to be verified at a single platform station. Modular scale pads support multiple riders simultaneously while the display can number riders for proper raft seating order, improving efficiency and safety during ride loading.

Built for harsh outdoor environments, the SR1601 features a 316 stainless steel frame, non-slip plastic scale tops, hermetically sealed load cells, and sealed display components, providing years of reliable maintenance-free operation in waterpark conditions.

Key Features

• Go/No-Go LED rider qualification system for fast rider verification
• Supports individual rider and group raft weight qualification in one station

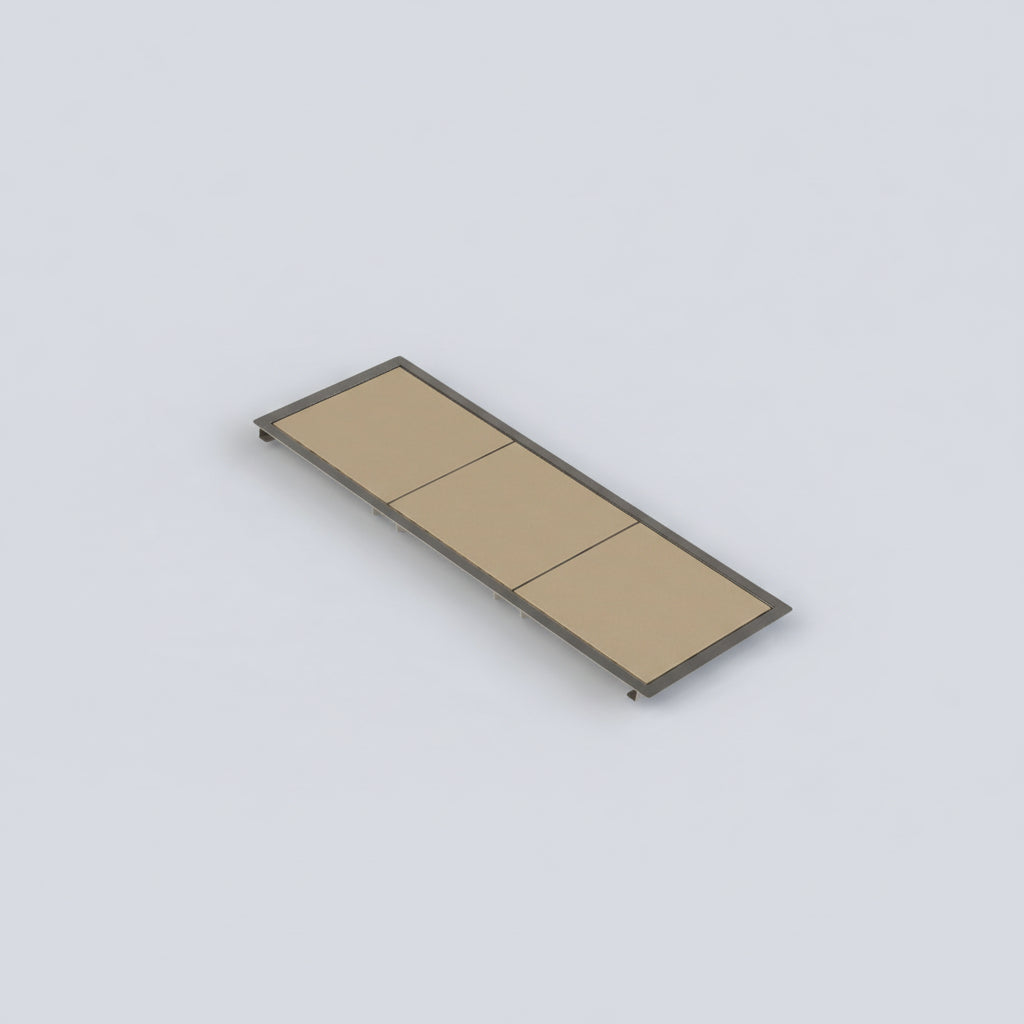

• Modular scale pad system supporting up to six individual riders

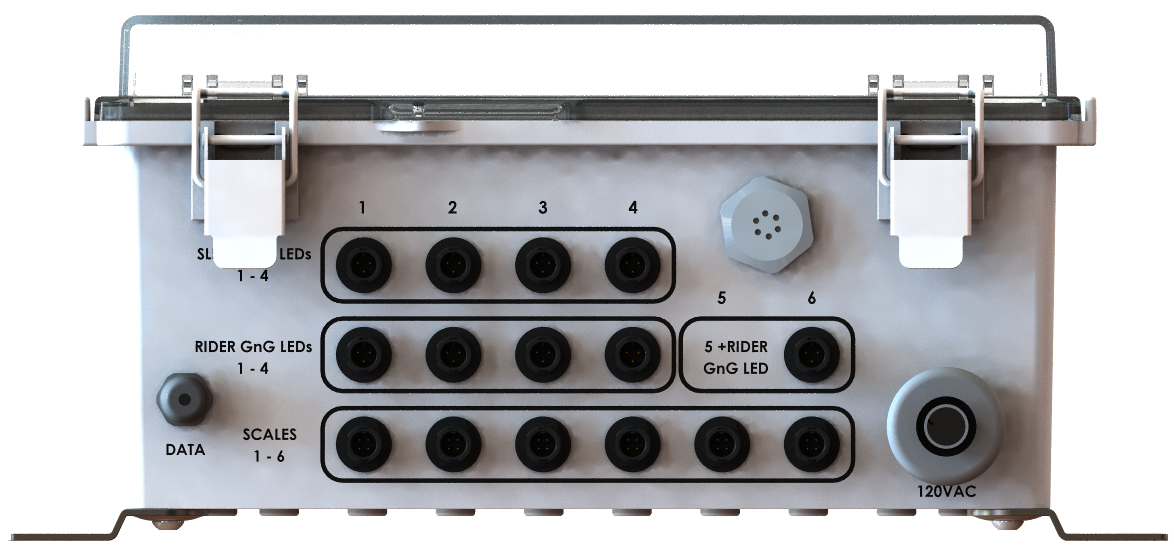

• Up to four slide weight limit outputs for towers with multiple slides
• Individual rider Go/No-Go light indicators for clear operator guidance

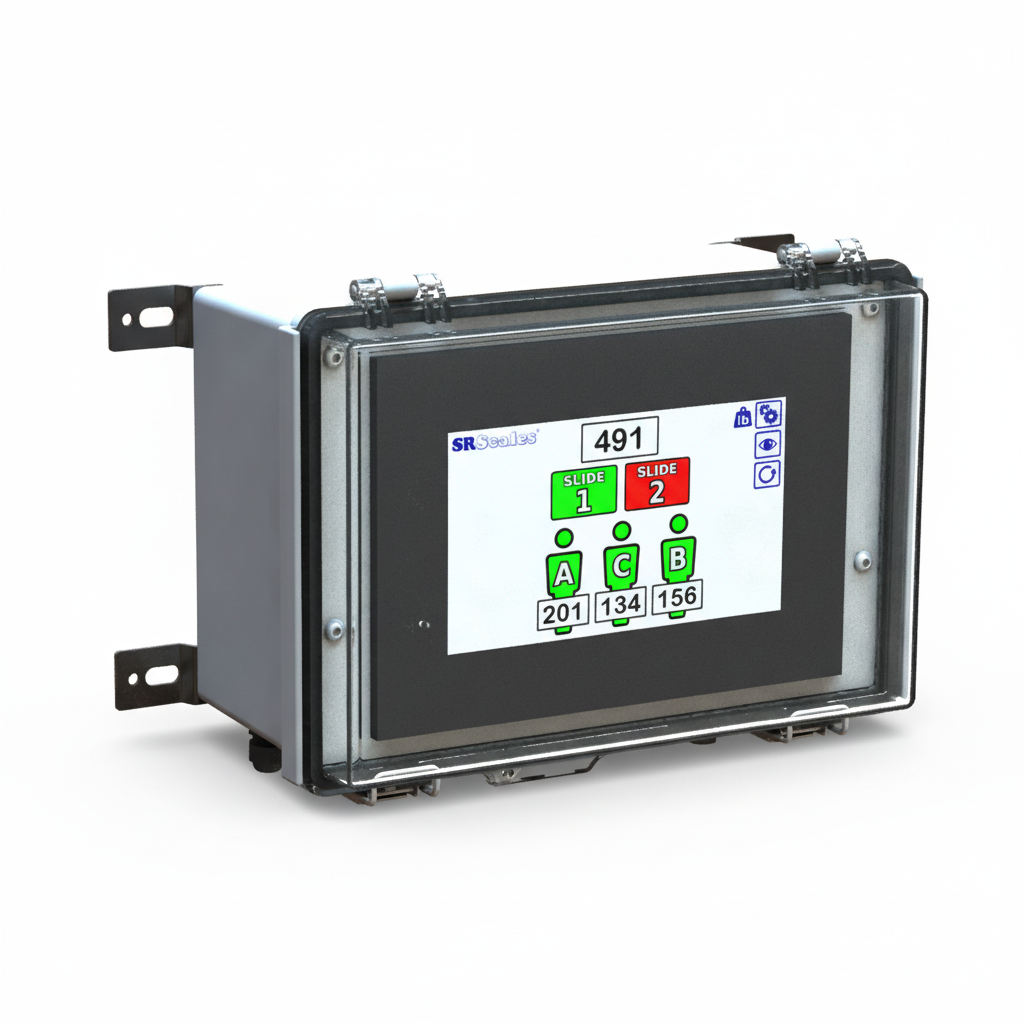

• Programmable weight limits through the touchscreen display
• Non-skid textured solid plastic scale pad surface for secure footing

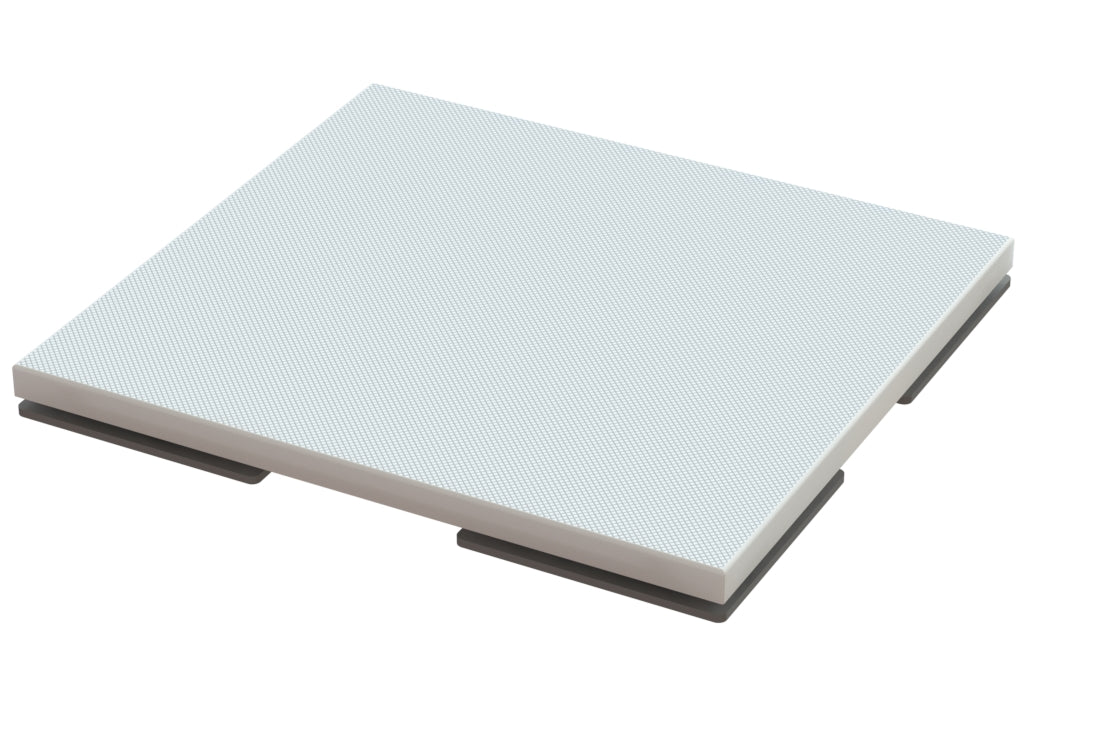

• 22" x 22" individual scale pads for accurate rider weighing
• ModBus communication for integration with launch control and data systems
• Durable 316 stainless steel construction for long-term outdoor use
• Hermetically sealed load cells designed for wet waterpark environments
• 2-year manufacturer warranty
